EMI / EMC Solution Parts

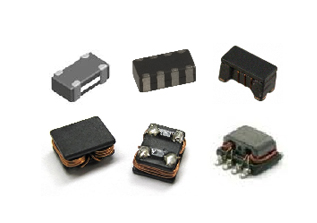

SMD Common Mode Chokes
BMF/JBT/MCA/MCC/T4W/WCK
To be the leading supplier of magnetic, passive, electro mechanical, and discrete components with value added services and create demand for all tiers of customers in electronics industry.

|　產品型號
SMD Common Mode Chokes
Series
Download
Dimension
Electrical Characteristics 1
Electrical Characteristics 2
BMF1211 12.5*10.8*6.5mm Impedance:Ω Rated Current:
BMF1513 15.0*13.0*6.5mm Impedance:200~1000Ω Rated Current:9A ~ 13A
BMF7060 7.0*6.0*3.8mm Impedance:40 ~ 3500Ω Rated Current:0.8A ~ 15A
BMF9070 9.0*7.0*4.8mm Impedance:225 ~ 270Ω Rated Current:2.5A ~ 6.0A
JBT0603 7.5*6.0*3.2mm Impedance:600 ~ 700Ω Rated Current:2.0A
JBT0805 10.0*8.0*5.0mm Impedance:700 ~ 900Ω Rated Current:4.0A
JBT1006 12.0*10.0*6.0mm Impedance:800 ~ 1200Ω Rated Current:5.0A
MCA3216 3.2*1.60*1.0mm Impedance:67 ~ 220Ω Rated Current:400mA
MCC2012 2.0*1.25*1.0mm Impedance:67 ~ 220Ω Rated Current:400mA
T4W5050 5.0*3.5*2.50mm Impedance:90 ~ 300Ω Rated Current:500mA
T5W6560 6.7*6.1*3.75mm Impedance:120 ~ 500Ω Rated Current:500mA
WCK1608 1.6*0.8*1.1mm Impedance:22 ~ 250Ω Rated Current:500 ~ 400mA
WCK2012 2.0*1.2*1.2mm Impedance:67 ~ 360Ω Rated Current:400 ~ 280mA
WCK3216 3.2*1.6*2.0mm Impedance:90 ~ 2200Ω Rated Current:400 ~ 200mA
WCK3225 3.2*2.5*2.7mm Impedance:80 ~ 1000Ω Rated Current:400 ~ 200mA
WCK4532 5.8*2.4*2.5mm Impedance:600Ω Rated Current:1500mA
