Power Inductors

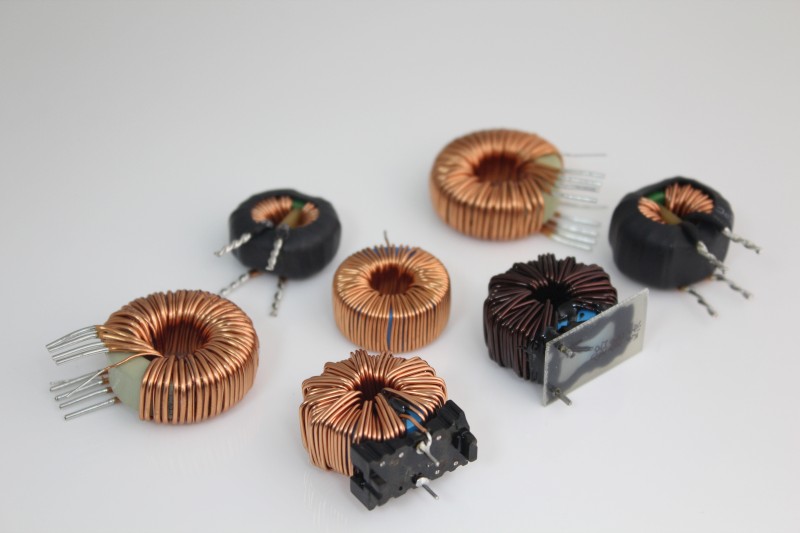

Power Inductor DIP - Toroid Type
BWLM/LI Series

|　產品型號
Power Inductor DIP - Toroid Type
Series
Download
Dimension
Electrical Characteristics 1
Electrical Characteristics 2
BWLM-TR080 25*25*12mm Inductance:220uH Rated Current:2.0A
BWLM-TR090 28*28*16mm Inductance:380uH Rated Current:3.0A
BWLM-TR093 28*28*15mm Inductance:540uH Rated Current:2.0A
BWLM-TR106 32*32*18mm Inductance:480uH Rated Current:4.0A
BWLM-TR130 38*38*17mm Inductance:420uH Rated Current:4.0A
LI3852 13.0*8.0*6.0mm Inductance:1.0 ~ 10uH Rated Current:8.0 ~ 0.8A
LI4426 15.0*7.5*6.0mm Inductance:1.0 ~ 10uH Rated Current:8.0 ~ 0.8A
LI4452 15.0*7.5*6.0mm Inductance:1.0 ~ 10uH Rated Current:8.0 ~ 0.8A
LI5018 15.5*8.0*6.0mm Inductance:1.0 ~ 10uH Rated Current:8.0 ~ 0.8A
LI5018B 15.5*9.5*6.0mm Inductance:1.0 ~ 10uH Rated Current:8.0 ~ 0.8A
LI5026 15.5*8.0*6.0mm Inductance:1.0 ~ 10uH Rated Current:8.0 ~ 0.8A
LI5026B 15.5*9.5*6.0mm Inductance:1.0 ~ 10uH Rated Current:8.0 ~ 0.8A
LI6018 20.0*10.0*6.0mm Inductance:1.0 ~ 10uH Rated Current:8.0 ~ 0.8A
LI6052 20.0*10.0*6.0mm Inductance:1.0 ~ 10uH Rated Current:8.0 ~ 0.8A
